Description

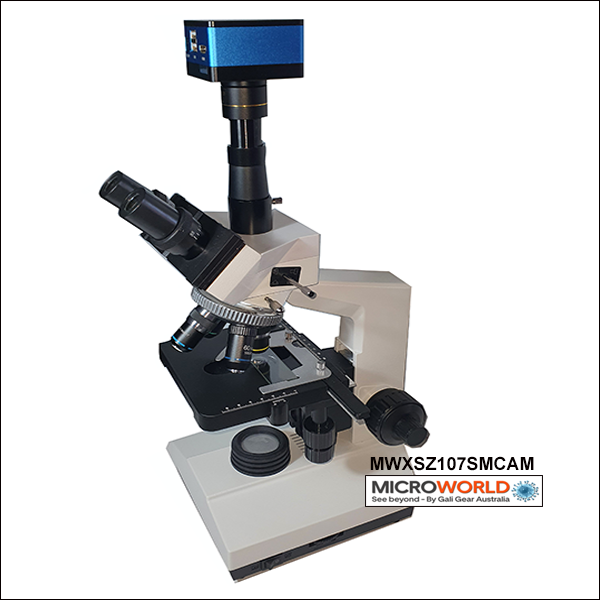

MWXSZ107SCAM Trinocular Microscope with ToupCam OCam1080P2MPA Camera
The MWXSZ107SMCAM Trinocular Microscope is a versatile and professional-grade optical instrument ideal for laboratory, educational, and research applications. Designed with precision optics and a robust mechanical framework, this microscope delivers high-resolution imaging and ergonomic operation for extended use. The trinocular head allows simultaneous viewing through the eyepieces and the camera port, enabling easy image capture and live demonstrations.
Equipped with achromatic objectives and wide-field 10x eyepieces, the MWXSZ107SMCAM provides crisp and clear magnification ranging from 40x to 1000x using semi-chrome objectives. The coaxial coarse and fine focusing mechanism ensures smooth and precise adjustments, while the rotatable head and adjustable interpupillary distance offer comfort for multiple users. The built-in LED illumination with adjustable brightness ensures optimal lighting for various specimen types without the heat buildup associated with halogen sources.
A standout feature of this setup is its integration with the ToupCam OCam1080P2Mpa digital camera, a powerful addition that transforms the microscope into a full digital imaging workstation.

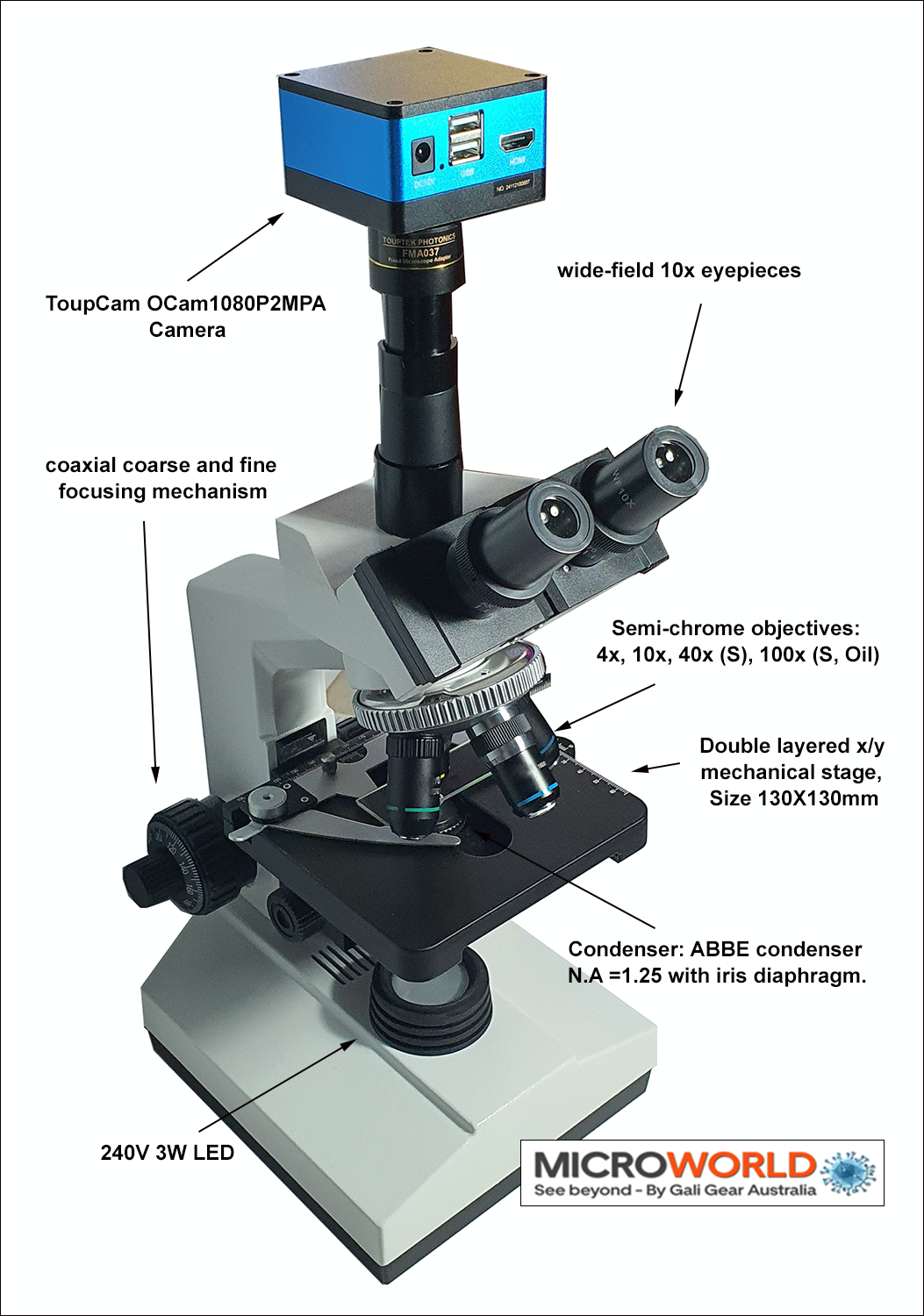

Microscope specifications:
Viewing head: Trinocular (for easy camera attachment)
Stage: Double layered x/y mechanical stage, Size 130X130mm
Eyepiece head: Wide Filed Eyepiece WF10X
Objectives: Semi-Chrom, 4X, 10X, 40X (Spring), 100X (Spring, Oil)
Focusing: Coaxial coarse and fine adjustment
Condenser: ABBE condenser N.A =1.25 with iris diaphragm.
Illumination: LED 3W 240V
Warranty: 12 months back to base, repair or replacement warranty
ToupCam OCam1080P2MPA Camera: Features & Software
The ToupCam OCam1080P2Mpa is a high-definition CMOS microscope camera delivering 2-megapixel resolution (1920×1080) at a smooth 30 frames per second. It is specifically designed for real-time viewing, image capture, and documentation in microscopy applications.
This camera is bundled with ToupView software, a feature-rich imaging suite for Windows, macOS, and Linux. ToupView enables users to capture still images and videos, perform real-time measurements, and apply a wide range of image enhancement tools. It also supports time-lapse recording, annotation, calibration, and multi-layer focusing. The software’s intuitive interface makes it accessible for beginners while offering advanced features for experienced users.
One of the standout capabilities is its live preview with minimal latency, making it suitable for classroom demonstrations, live streaming, or collaborative lab work. The camera’s sensitivity and color fidelity allow for accurate representation of biological and industrial samples, making it a reliable tool for documentation and analysis.
Overall, the MWXSZ107SMCAM with the ToupCam OCam1080P2MPA is a comprehensive solution for anyone needing high-quality optical performance with the convenience of digital imaging. Whether for teaching, diagnostics, or detailed specimen analysis, this setup delivers clarity, functionality, and ease of use—all in one affordable package.
Camera features:
- HDMI camera with back-illuminated CMOS sensor
- Embedded XCamView software for controlling cameras with measurement, grid line overlay, and custom templates functions
- Providing automatic measurement functions such as automatic edge finding, parallel line distance measurement and rectangle measurement
- USB flash drive port for captured image and video storage, supports local preview and playback, picture to picture and picture to video comparison functions
- Excellent ISP with functions such as dark enhancement, sharpening, and 3D denoising
Supports quick switching of default modes for biological and stereoscopic microscopes, making it convenient for users to in different scenarios
This professional package includes:
- MWXSZ107SCAM Trinocular Head Microscope
- 240V Power cord
- C-Mount sleeve
- Camera: ToupCam OCam1080P2MPA 2MP Camera and lens adapter
