Description

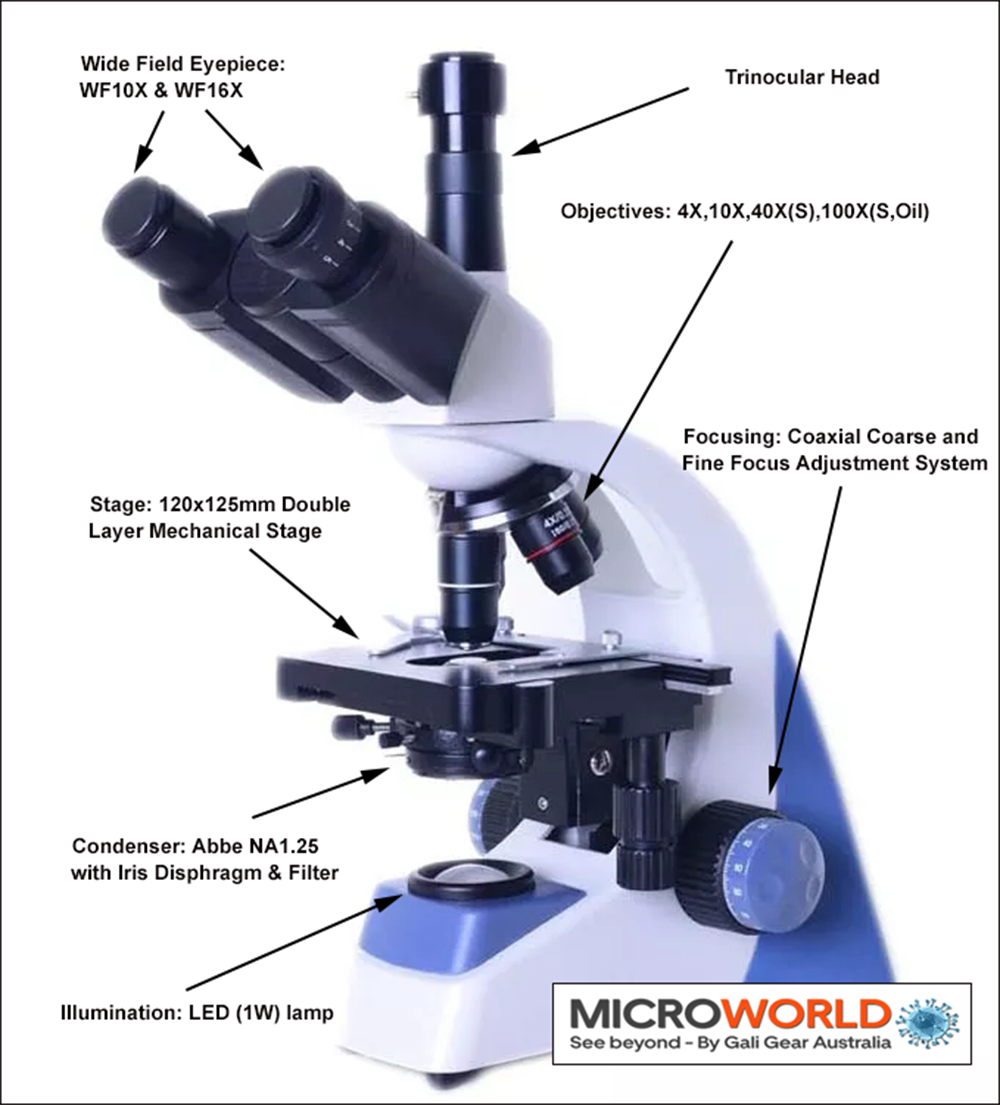

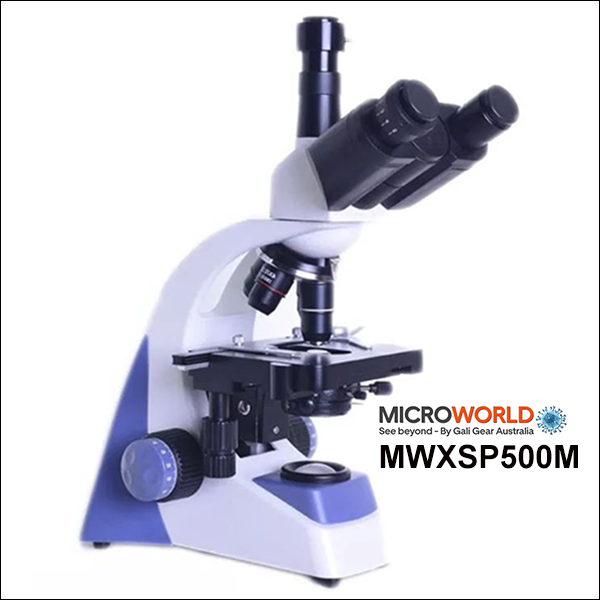

The MWXSP500M is a versatile trinocular biological microscope designed for educational and research applications. It offers magnification levels ranging from 40X to 1000X, facilitated by a set of achromatic objectives: 4X, 10X, 40X (spring), and 100X (spring, oil). The microscope is equipped with a trinocular head providing comfortable viewing and features a large field of view eyepiece (WF10X), with an optional WF16X eyepiece available. Its double-layer movable stage measures 120x125mm, allowing precise specimen positioning. The coaxial coarse and fine focus adjustment system offers a focusing range of 30mm, with a fine adjustment interval of 0.002mm, ensuring detailed examination. An Abbe condenser with NA1.25, iris diaphragm, and filter enhanced image clarity by controlling light intensity and contrast. The LED illumination system operates on 220V or 110V, providing consistent lighting for various observation needs. This microscope is an excellent tool for students and professionals seeking reliable performance in biological studies.
Viewing head: Trinocular (for easy camera attachment)
Stage: Double layered x/y mechanical stage, Size 120X125mm
Eyepiece head: Wide Filed Eyepiece WF10X and WF16X
Objectives: 4X, 10X, 40X (Spring), 100X(Spring, Oil)
Focusing: Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm
Illumination: LED 1W 240V
Warranty: 12 months back to base, repair or replacement warranty
A Free dust cover is included. Order lead time 2-3 weeks.
